Inflatable Door Seal For Lyophilization
Bombay Rubber & Carbon Works
Bombay Rubber & Carbon Works has developed and supplied food-grade inflatable door seals to lyophilizer manufacturers and end users worldwide.
Lyophilization, or freeze drying, is a complex process used across pharmaceuticals, biotechnology, and food preservation[cite: 2]. It involves freezing a product and then removing the ice by sublimation under vacuum, preserving the product in a stable, dried state .
Thermal mapping of the lyophilizer chamber is critical to ensure uniform temperature distribution throughout the process, and a Bombay Rubber & Carbon Works inflatable door seal helps create the tight chamber seal needed to maintain the precise vacuum and temperature conditions that successful lyophilization depends on .
| Parameter | Typical Value |
|---|---|
| Base Elastomer | Transparent silicone (food-grade) |
| Certification | Complies with FDA and EU norms |
| Sealing Location | Lyophilizer (freeze dryer) chamber door |
| Construction | Handbuilt -or fully moulded, with fabric reinforcement option for larger chambers |
| Actuation Medium | Compressed air, pressure-controlled |
| Process Conditions Supported | Vacuum chamber sealing through freeze/sublimation cycle |
| Sealing Gap Accommodation | 2 mm – 10 mm typical |
| Expansion Modes | Axial, internal radial, external radial |
| Mounting | Metal retaining groove on lyophilizer door perimeter |
| Format | Continuous endless loop, sized to chamber door dimensions |
| Customisation | Built to customer sketch/drawing, chamber model, and special-feature requirements |
Values above are typical for standard lyophilizer door-sealing duty; confirm exact figures against the compound-specific technical data sheet for your lyophilizer model .

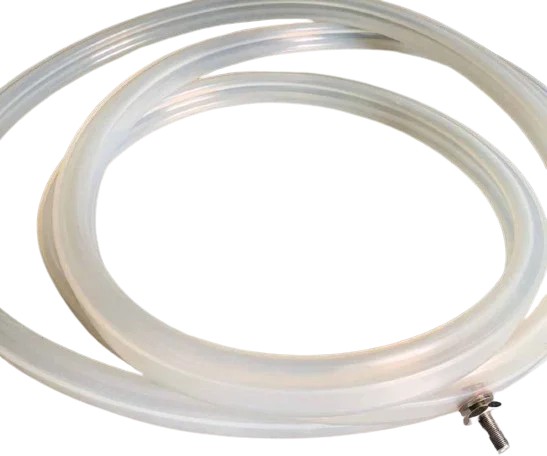

Why transparent, food-grade silicone?
Lyophilization chambers in pharmaceutical and food applications demand a seal material that is inert, hygienic, and visually inspectable all at once . Bombay Rubber & Carbon Works uses a transparent silicone compound that complies with FDA and EU norms, giving operators the ability to visually check the seal's condition without disassembly while maintaining full regulatory compliance for product-contact and near-product-contact applications .
Key material properties
- Transparency: allows quick visual inspection of the seal for wear, damage, or contamination without removing it from the chamber .
- FDA and EU compliance: meets the regulatory standards required for pharmaceutical and food-contact applications, supporting validated, audit-ready equipment.
- Vacuum/thermal cycle stability: maintains sealing integrity through repeated freeze, vacuum, and sublimation cycles without degrading or losing elasticity .
- Low extractables: food-grade silicone construction minimises the risk of the seal contributing any contamination to the chamber environment, which matters given how closely thermal mapping and chamber uniformity are tied to product quality .
- Hygienic, cleanable surface: supports the cleaning and sanitation protocols typical of pharmaceutical and food processing environments .
Bombay Rubber & Carbon Works provides technical guidance on seal design and sizing to match each lyophilizer chamber, ensuring the inflatable seal supports the precise vacuum conditions the freeze-drying cycle requires .
Inflatable door seals for lyophilization are specified wherever freeze-drying technology is used :
- Pharmaceutical manufacturing: lyophilized injectables, vaccines, and biologics production
- Biotechnology: freeze-drying of biological samples, cell cultures, and research materials
- Food preservation & processing: freeze-dried food products requiring food-grade, FDA-compliant sealing
- Contract manufacturing & fill-finish operations: lyophilizer equipment used across multi-product pharmaceutical production lines
- Research & laboratory freeze-drying: smaller-scale lyophilizers used in R&D settings
- Lyophilizer equipment manufacturing: OEM sealing components for new chamber builds
